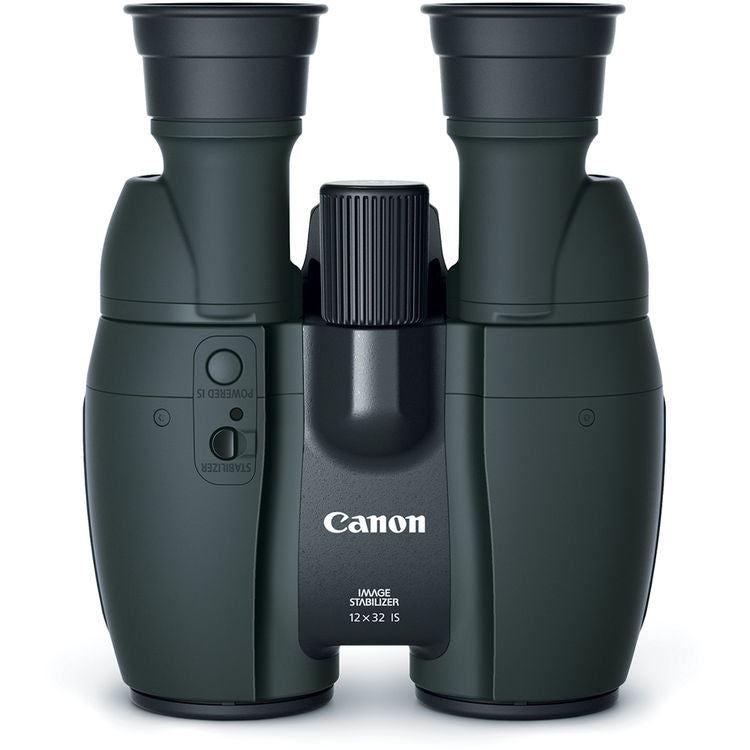

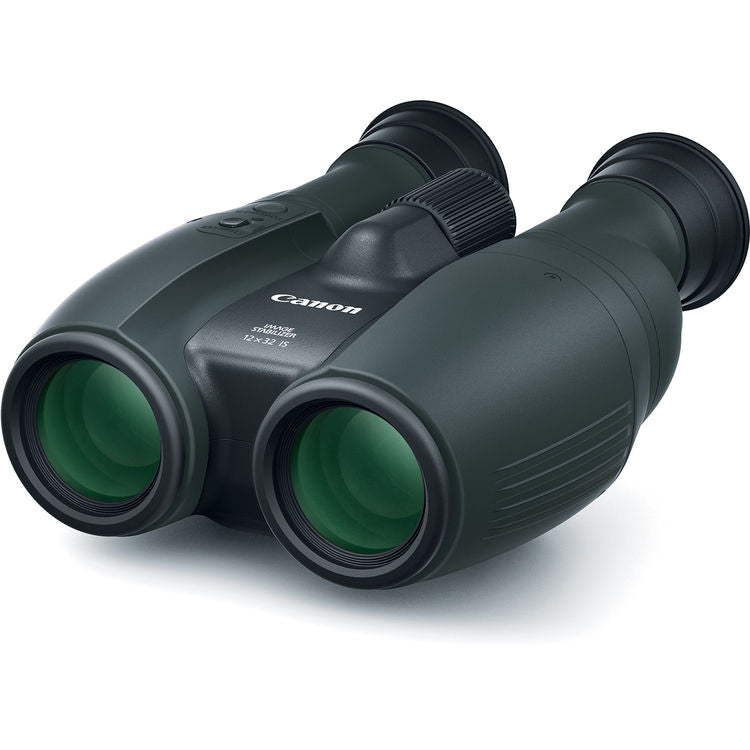

Adapting the IS system from their line of EF lenses, the Canon 12x32 IS Image Stabilized Binocular employs a lens-shift system uses a combination of a vibration gyro-mechanism and microprocessors that detect and counter the appearance of hand-shake by moving the internal lens assembly to make the image appear steady. As a general rule, optics of this magnification and higher are extremely prone to the appearance of visible hand-shake, which interferes with clear and immersive views. Through the use of image stabilization, users can enjoy high-power observations without the distracting shake, or the need for tripods or other support systems normally required to achieve steady images.


Two IS modes allow the performance to be tailored to the situation: Normal IS is ideal for moving or multiple subjects, while Powered IS improves the stabilization when observing a single stationary subject. An intuitive two-button user interface makes choosing the mode simple and easy. The IS runs on two included AA batteries, and when not using the image stabilization, the optic will operate as a conventional pair of binoculars.

Optically, the binoculars are built with traditional Porro prisms, and an integrated field-flattener lens that corrects spherical aberration for distortion-free views, especially at the edges. Canon's proprietary Super Spectra Coating is used to limit color bias, lens flare and ghosting; while maximizing light transmission, color rendition, clarity, and contrast across the entire visible spectrum. With this new IS system, the close focus distance has been drastically reduced versus earlier models that use a different IS mechanism.

Performance

12x magnification
32mm objective lens
Porro prism light path
Fully multi-coated optics using Canon's proprietary Super Spectra Coating to limit color bias, lens flare and ghosting; while improving light transmission, color rendition, clarity, and contrast across the entire visible spectrum
Doublet field-flattener lens corrects spherical aberration for distortion-free views, especially at the edges
7-element/6-group objective lens configuration
5-element/4-group eyepiece lens configuration
262-foot field of view at 1000 yards
6.6' close focus distance is an improvement over earlier IS models

Image Stabilization

Lens-Shift image stabilization system uses a vibration gyro-mechanism, in conjunction with microprocessors, that detect and counter the appearance of hand-shake by moving the internal lens assembly horizontally and vertically, to make the image appear steady
Powered Image Stabilization is a secondary IS system that improves the image stabilization when focused on a single subject
±1.0° correction angle
Runs on two AA batteries

Use and Handling

Simple 2-button interface: Normal IS and Powered IS
Large center focus wheel
±3 right eye dioptric correction
55-76mm interpupillary adjustment range
Fold-down rubber eyecups for comfortable use with or without eyewear
14.5mm eye relief
2.7mm exit pupil

Construction Details

Redesigned chassis is more ergonomic to fit more comfortably in the hand
Slip-resistant rubber armoring provides a sure grip
Weight: 27.5 ounces
